Splice Pigtailed 1X2 Fiber Optic Splitter ABS Module PLC Fiber Splitter 2.0mm Sc APC Singlemode

Product Categories

Jiangsu Dierite Optoelectronics Technology Co.,Ltd.

Contact Now

Splice Pigtailed 1X2 Fiber Optic Splitter ABS Module PLC Fiber Splitter 2.0mm Sc APC Singlemode

Certification : CE, ISO, RoHS

Application : Fiber Distribution Frame, Network Equipment, Fiber Module

Light Source TYPE : Passive

Connector Type : SC-APC

Brand : OEM

Fiber Type : G657A1 or Customized

Jacket Material : PVC/LSZH

Directivity (dB) : > 55

Operating Wavelength(Nm) : 1260~1650(Nm)

Product Fiber Type : G657A1 or as Customers′ Order

Ferrule Type : Upc, APC

Condition : New

Operating and Storage Temperature : -40~ + 85°c

Return Loss (dB) : 55/50

Wiring Devices : ODF

Type : Fiber Optic Splitter&Coupler

Transport Package : Carton

Specification : Customizable

Trademark : Dierite

Origin : Changzhou Jiangsu China(Mainland)

HS Code : 854470000

Supply Ability : 800000pieces/Month

Transmission Medium : Single-Mode

Structure : SC

Number of Cores : Single-Core

Ferrule Endface : APC

Shape : Square

Fabrication Process : Moulded

Samples : US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

Contact Now

Factory Direct Hot Sale Splice/Pigtailed 1X2 ABS Module PLC Fiber Splitter, 2.0mm, Sc APC, Singlemode

Product Description

Factory Direct Hot Sale SplicePigtailed 1X2 ABS Module PLC Fiber Splitter, 2.0mm, SC APC, Singlemode

Technical parameters

Operating Wavelength(nm)	1260~1650(nm)
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)	55/50
Operating and storage Temperature(°C)	-40~ + 85
Directivity (dB)	> 55

Order information

Code		Splitter
Configuration		0102	0104	0108	0116	0132	0164
Configuration		1x2	1x4	1x8	1x16	1x32	1x64
Connector Type		SC	LC	FC	ST
Ferrule Type		UPC	APC
Fiber Type		G657A1 or Customized
Jacket	Material	PVC/LSZH
Jacket	Color	Yellow	Blue	Black	Orange	Aqua	Purple	Customized
Diameter (mm)		2.0	3.0
Cable Length(cm)	Input	50	70	100	150	Customized
Cable Length(cm)	Output	50	70	100	150	Customized

Product profile

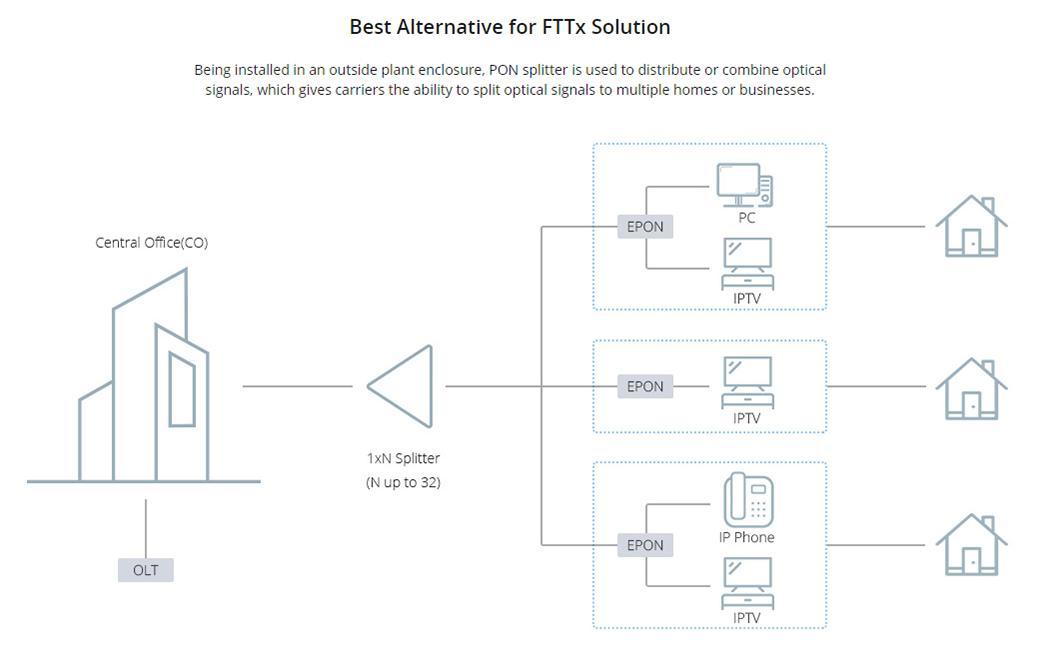

ABS box type PLC splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

Characterstic
•Excellent Mechanical,Small Size.
•High Reliability.
•Low insertion Loss and low Polarization Dependent loss.
•High channel counts.
•Excellent Environmental Stability and Widely Used.
•Connector Type: SC or Customer specified.

Application
•FTB Deployments(GPON/BPON/EPON).
•Cable television (CATV).
•Local area networks (LAN).
•Test equipment.
•Passive optical networks(PON).

No.	1	2	3	⁴	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Splice Pigtailed 1X2 Fiber Optic Splitter ABS Module PLC Fiber Splitter 2.0mm Sc APC Singlemode

Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.

Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001_,CE_/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.
Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.

Splice Pigtailed 1X2 Fiber Optic Splitter ABS Module PLC Fiber Splitter 2.0mm Sc APC Singlemode
