Technical parameters
| Characteristic | Item | Test condition | Single mode fiber | Multimode Fiber |
| Optical property | Insertion Loss (dB) | 1310nm | <0.3dB | - |
| 1550nm |
| Return Loss (dB) | 1310nm | - | >45dB |
| 1550nm |
| Mechanical test | Vibration test | 10-60Hz, 1mm full amplitude | △IL<0.2dB | △RL<5dB |
| Tensile strength | >50N | △IL<0.2dB | △RL<5dB |
| Environmental property | High temperature test | +85°C 96hs | △IL<0.2dB | △RL<5dB |
| Cryogenic test | -40°C, 96hs | △IL<0.2dB | △RL<5dB |
| Damp heat test | +40°C,90-95%RH,96hs | △IL<0.2dB | △RL<5dB |
Ordering information | Cable dimension | 2.0*3.0mm/2.0*5.0mm/or customer specified |
| Cable length | 1m,3m,5m,15m,25m,30m or customer specified |
| Fiber type | B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125,
OM3=Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5= Maxband*550 |

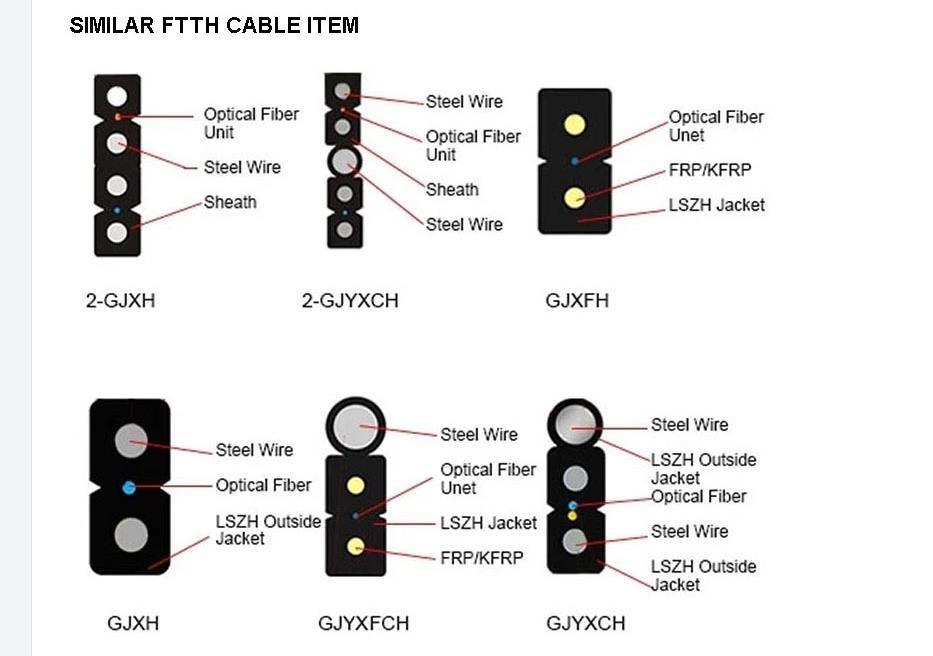

| Drop cable structure | GJXH,GJXFH, GJYXCH,GJYXFCH |
| Fiber count | 1-2 |
| Fiber color | Refer to Chromatogram |
| Outer jacket material | LSZH |
| Outer jacket color | Black, white or refer to Chromatogram |
| Connector A side | Connector type | LC, SC, ST, FC |
| Ferrule type | UPC,APC |
| Connector B side | Connector type | LC,SC,ST,FC |
| Ferrule type | UPC,APC |
Product profile
The Pre-terminated bow type drop optical cable is our company's optical fiber movable connection device specially designed for fiber to the home (FTTH). It adopts the form of factory pre- terminated and provides an excellent alternative solution for the connection of the drop cable. Product feature •Low insertion loss, high return loss. •Good versatility and interchangeability stable and reliable connection, high repeatability.
•Outstanding tensile performance and convenient construction.
•Fully compatible with ordinary optical fiber connectors.
Application •Use of optical fiber communication in harsh outdoor environment.
•Optical fiber to the home (FTTH) ODN system.
•Introduce connection from outdoor to indoor equipment. | No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.
Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.
Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.
